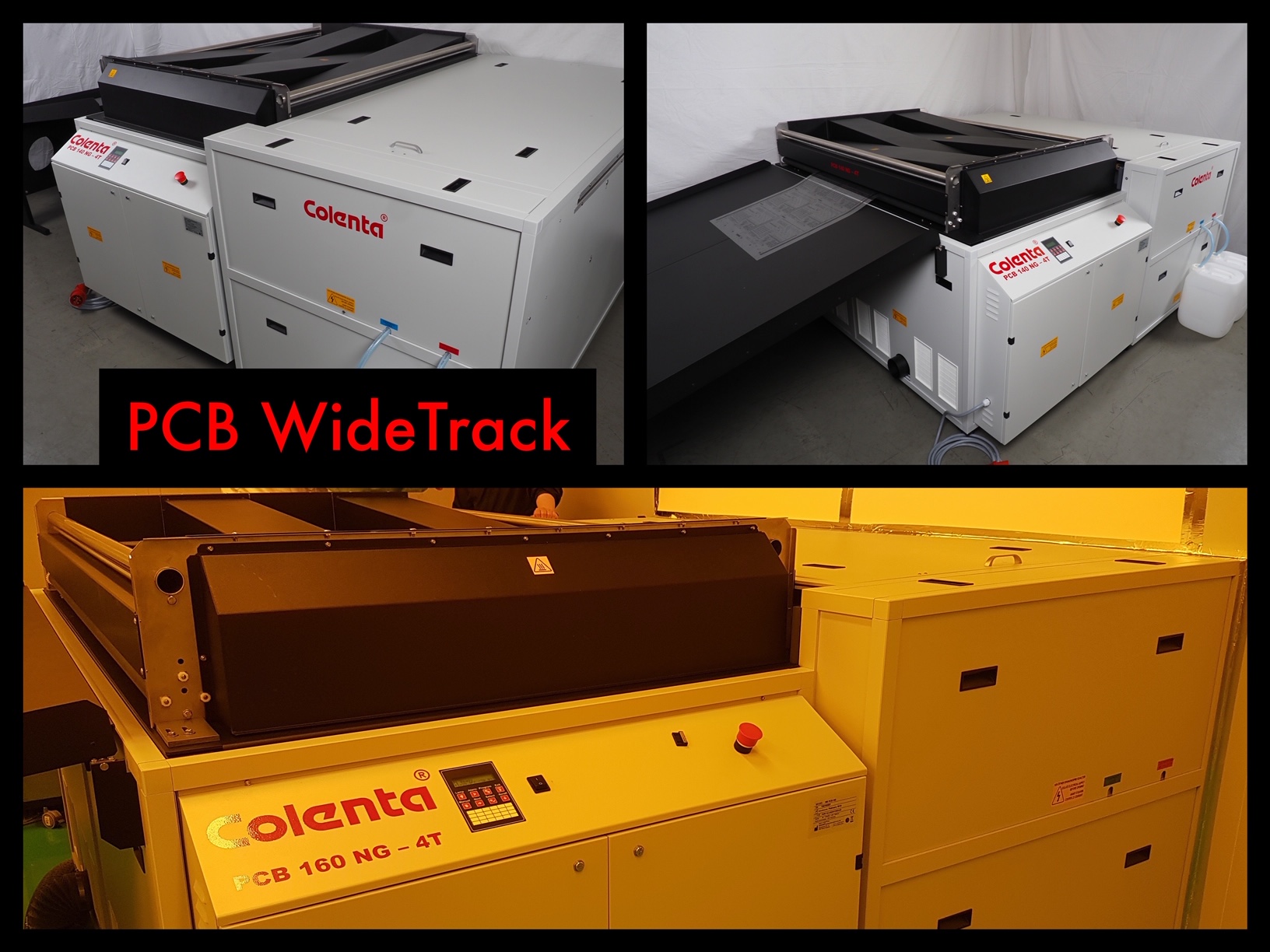

Widetrack PCB Film Processors

The Widetrack design allows for use by manual loading and also, subject to the model of Film Plotter, to be adapted for automatic Online loading directly from the film plotter.

The interface system and parts to connect the film plotter online to the processor is subject to the type and model of film plotter being used.


The Colenta 140 and 160 PCB 90 Film processor versions are the ideal choice to support the large format film plotter options currently available in the market.

The choice of the Colenta 140 PCB 90 or 160 PCB 90 Film Processor is subject to :

  • Model of plotter in use
  • Maximum film size to processed / manual loading

Youtube Logo PCB Processor Range Youtube Video









  • pic 8 BG7600.jpg
  • pic 2 BG7600.jpg
  • IMG_4121.JPG
  • IMG_0416.JPG
  • IMG_0415.JPG
  • IMG_0412.JPG
  • IMG_0382.JPG
  • IMG_0381.JPG

Files PCB Widetrack

Filename
An Adobe Acrobat file datasheet PCB 140 4Tank V00_2020
An Adobe Acrobat file datasheet PCB 160 4Tank V00_2020
An Adobe Acrobat file info PCB wide track V00_2019
